CDMGF High temperature type light vertical multistage centrifugal pump

ALL PRODUCTS

COMPANY NEWS

  • CNP Actively Participating in the 22nd Shandong International Water Exhibition

  • CNP Donated Medical Mask for Overseas Customers

  • ISO /TC 23/SC 18 SECRETARIAT visited CNP

  • CNP attended Aquatherm Moscow 2019

  • 2018 CNP overseas customers conference

OVERVIEW

PRODUCT DESCRIPTION

1. CDMF+CMH series is a new generation of high-efficiency non-self-priming high-pressure pumps independently developed according to European standards.

2. The product adopts a brand-new industrial design, and the energy efficiency index reaches MEI ≥ 0.7.

3. It has the characteristics of energy saving, low noise, environmental protection and compact structure, beautiful appearance, light weight, convenient use and maintenance, high reliability and so on.


FEATURES AND ADVANTAGES

High efficiency and energy saving.

Low noise and environmental protection.

Compact structure and beautiful appearance.

Light weight, easy to use and maintain.

High reliability.


WORKING CONDITIONS

Thin, clean, non-explosive liquid that does not contain solid particles and fibers.Or liquid whose physical and chemical properties similar to water.

Liquid temperature: Normal temperature type -15 ℃ ~ 70 ℃

Hot water type -15 ℃ ~ 120 ℃

Ambient temperature: up to 40 ℃

Altitude: up to 1000 meters

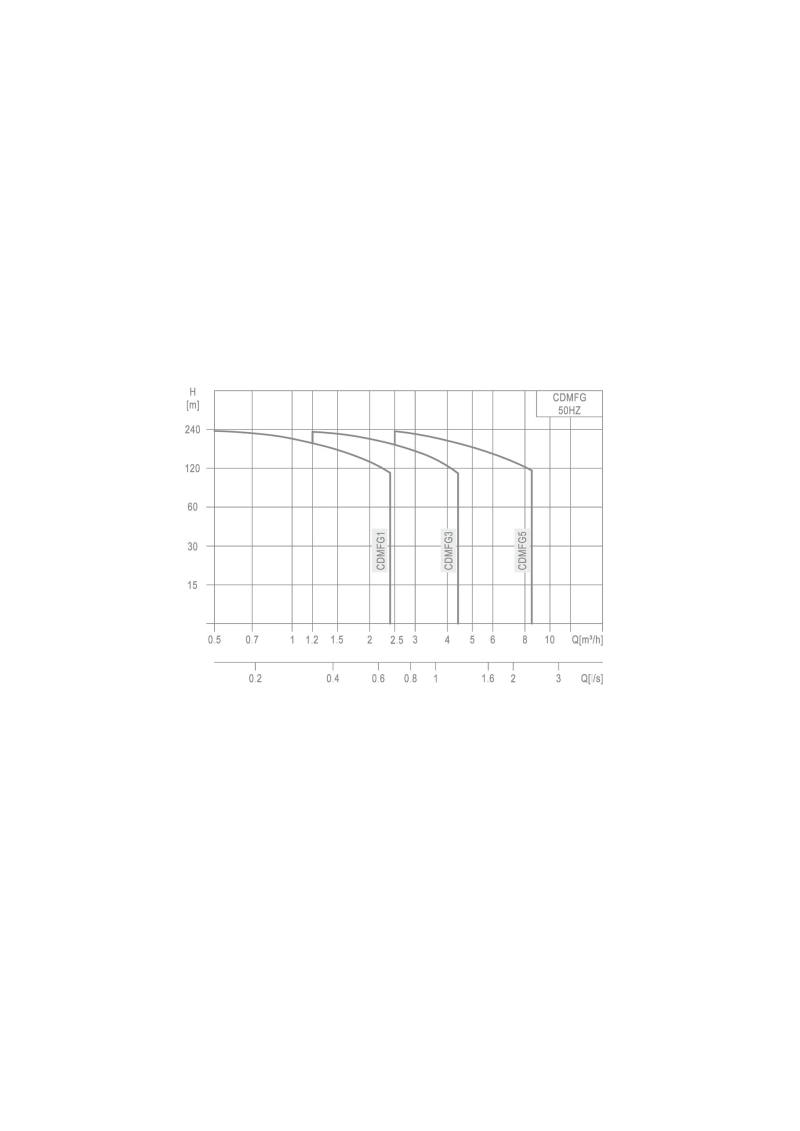

PERFORMANCE



DOWNLOAD

PRODUCTS AND MARKETS

CNP, a green water expert beside you.

TECHNICAL DATA

Flow rate:0.5m³/h~8.5m³/h

Head:4m~249m

Temp:-15℃~+180℃

Max. Wroking pressure: 25bar

APPLICATIONS

Hot water boilers

High temperature steam sterilization

Environmental waste treatment

Water supply and drainage

HVAC

Other industrial applications
